Product Description
The 300B tube is among most beloved triode valves and we know its dealings from inside out. After decades of refining and tweaking our circuits we’re presenting something utterly refreshing.

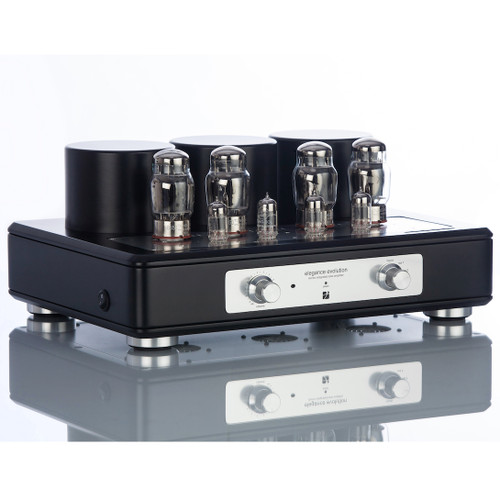

The Trafomatic Evolution Two is continuing the path of exploring our propriety direct heated circuit with no global feedback.
Evolution Two integrated amplifier is all about purity and preservation of the original music material. We’ve managed to establish unique sound performance, that derives the audio virtues from the iconic 300B tube, while keeping the natural vibrancy intact.
We’re proud to be among few high-end audio companies that goes beyond mirroring eschewed tube design. Trafomatic is all about innovation and taking the daring steps further into the 21st century, where every little thing matters. When it comes to the parts we still offer the best bang for the buck; Nipon Chemi-Con type electrolytic, Solen fast coupling capacitors, Van de Hul internal wiring, tube rectification and C-L-C choke type of regulation puts Evolution Two on a completely different level.
Forget about everything else if you’re in quest for the pure triode bliss, we know how to reach sonic zen.
Standard colour is black, any RAL colour is available as an optional extra.
Specifications
- Class of operation:
- Single- Ended (class A)
- Output power: 2x8W
- Tubes complement: 2x 300B EH gold grid , 2x 6SN7 , 1x 5U4G
- Inputs: 4 x RCA
- Outputs: 4 and 8 ohms
- Input sensitivity: 0.5Vrms
- THD %: 0.55% – 1W, 5% – 8W
- Bandwidth: 10Hz-60KHz( -3dB)
- S/N Ratio: 75dB
- Input impedance: 100K
- Power consumption: 190VA
- Input voltage: 230V/50Hz – 115V/60Hz Switchable
- Size: 450x320x215mm
- Weight: 22kg
