Product Description
The SVS SB-5000 R|Evolution sets a new standard for home audio subwoofers, delivering reference-level performance at a price that’s more accessible than ever. Combining cutting-edge technology with extreme power and precision, it’s designed for both music lovers and home cinema enthusiasts.
Our recommendation is ported for a/v and sealed for audio applications, although for our own home theatre setup we're preferencing sealed but more (dual) for a bigger kick at the expense of absolute output and extension.
With a sealed cabinet design, the SB-5000 produces crystal-clear, accurate bass with total control, while still delivering room-shaking power down to 17Hz for the most demanding movie soundtracks.
At its heart is a massive 15-inch high-excursion driver with dual edge-wound voice coils, powered by a 2,000W RMS, 5,000+W peak Class-D dual monoblock amplifier. This combination ensures deep, distortion-free bass with effortless dynamics.
To match its raw power, the SB-5000 features advanced intelligence with a 295MHz Analog Devices DSP processor – the most powerful ever used in a consumer subwoofer – guaranteeing precise frequency response and flawless performance in any room.
Control is simple and intuitive thanks to the SVS Subwoofer Smartphone App, giving you full access to volume, EQ, crossover, presets, and more.
The acoustically tuned, resonance-free sealed MDF cabinet ensures clean, uncoloured bass for the most natural sound reproduction.
Key Features:
-

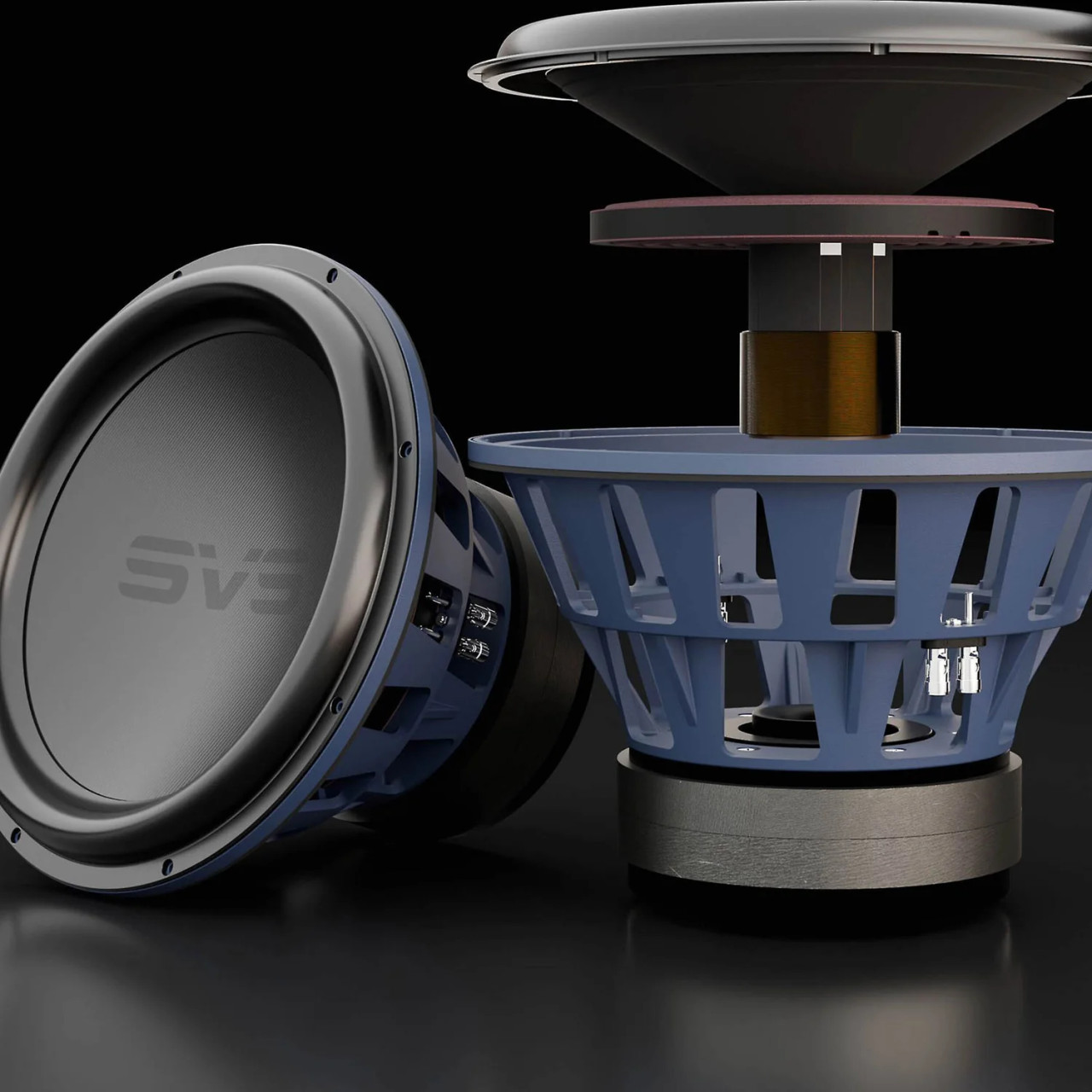

15-inch high-excursion driver with glass fibre composite cone and heavy-duty magnet motor
-
Dual edge-wound voice coils for precise control and maximum efficiency
-
Dual Class-D monoblock amplifiers delivering 2,000W RMS and over 5,000W peak power
-
Switch mode power supply for stable, clean signal performance
-
295MHz Analog Devices DSP for unmatched accuracy and tuning
-
Smartphone app control for full DSP management and presets
-
Sealed, acoustically tuned cabinet with heavy bracing for pitch-perfect sound
The SVS SB-5000 R|Evolution Subwoofer redefines what’s possible in its class – powerful, precise, and engineered for uncompromising performance in music and home theatre.
- 17Hz to 280Hz +/- 3dB
- Expect 2-3Hz deeper extension in small to mid-size rooms.
- Roll-off slope specifically optimised to take maximum advantage of available room gain.
- 2-meter ground plane away from reflective structures (quasi-anechoic).
Subwoofer Specifications:
- Piano Gloss Black and Black Ash options
- Front Firing 15-inch high-excursion driver

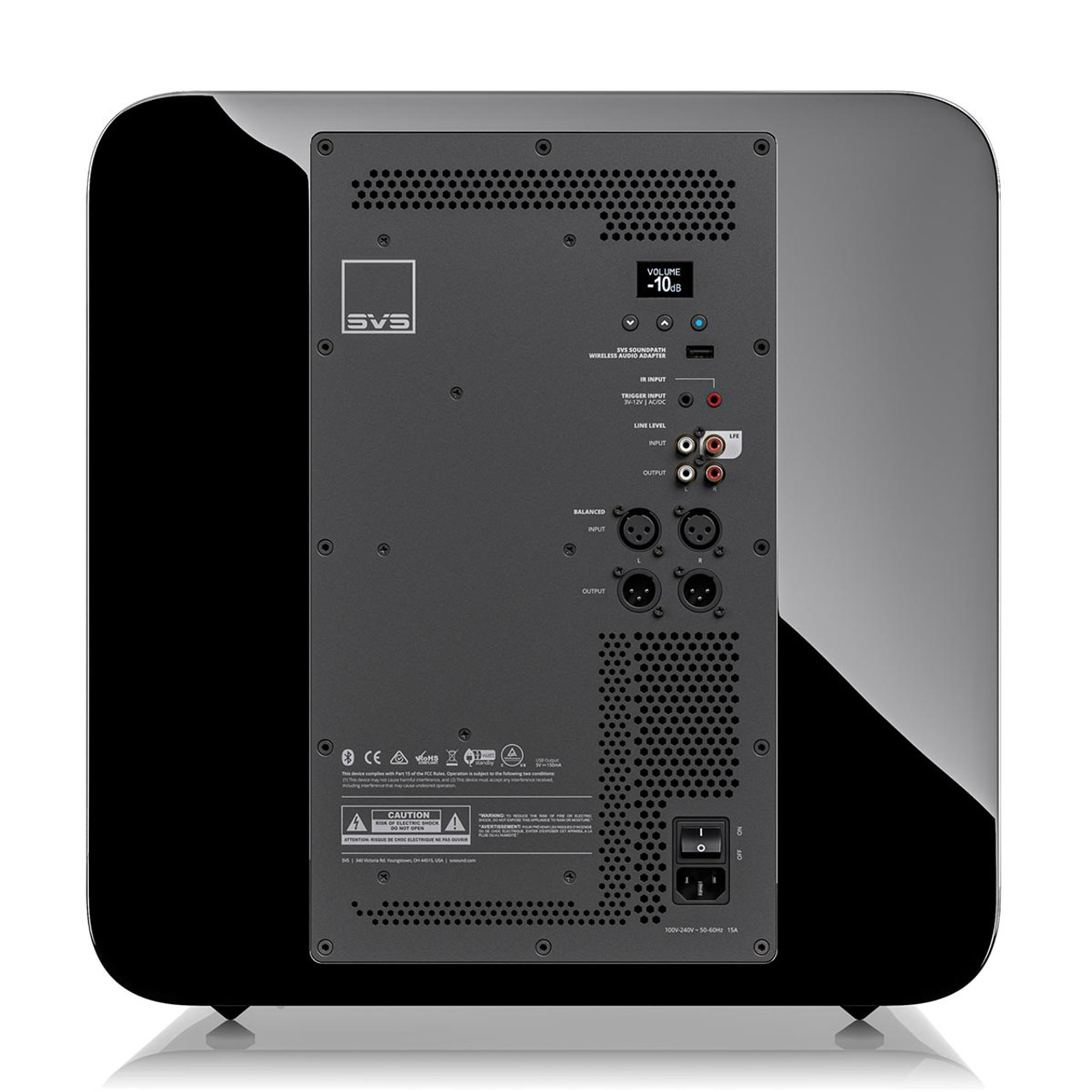

- Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
- Robust Medium Density Fibreboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels.
- Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
- Dimensions (with grille): 465mm H x 453mm W x 495mm) D
- Dimensions (without grille): 465mm H x 453mm W x 468mm) D
- Shipped Dimensions: 588mm H X 598mm W X 712mm D
- Weight (unboxed): 46.3kg
- Shipped Weight: 54.8kg
Full specifications can be found here: https://www.svsound.com/products/sb-5000
