Product Description
Just traded, this near-new Pass Labs XP-17 phono stage looks absolutely brand new. Not a mark on it and of course performs flawlessly. Save thousands!
Experience unprecedented analog depth with the Pass Labs XP-17, a critically acclaimed, single-chassis high-end phono preamplifier. Engineered by legendary audio designer Wayne Colburn, the XP-17 condenses the class-leading performance of Pass Labs’ multi-chassis statement pieces into a sleek, space-saving design.
As a significant upgrade over the legacy XP-15, this audiophile phono stage delivers an ultra-quiet noise floor, expansive dynamic resolution, and organic tonal accuracy that brings your vinyl collection to life.
Key Performance Features
- Symmetrical Input Circuit: Utilises quad-matched low-noise JFETs to drastically reduce distortion and maximise signal purity.
- Shielded Toroidal Power Supply: Features an internal, heavily shielded filter module that eliminates mechanical hum and radiated noise.
- Split EQ Network: Employs trickle-down technology from flagship models to handle higher signal levels with absolute transparency.
- Maximum Versatility: Engineered to extract peak performance from Moving Magnet (MM), Moving Coil (MC), and Moving Iron (MI) cartridges.
Customisable Cartridge Loading & Gain

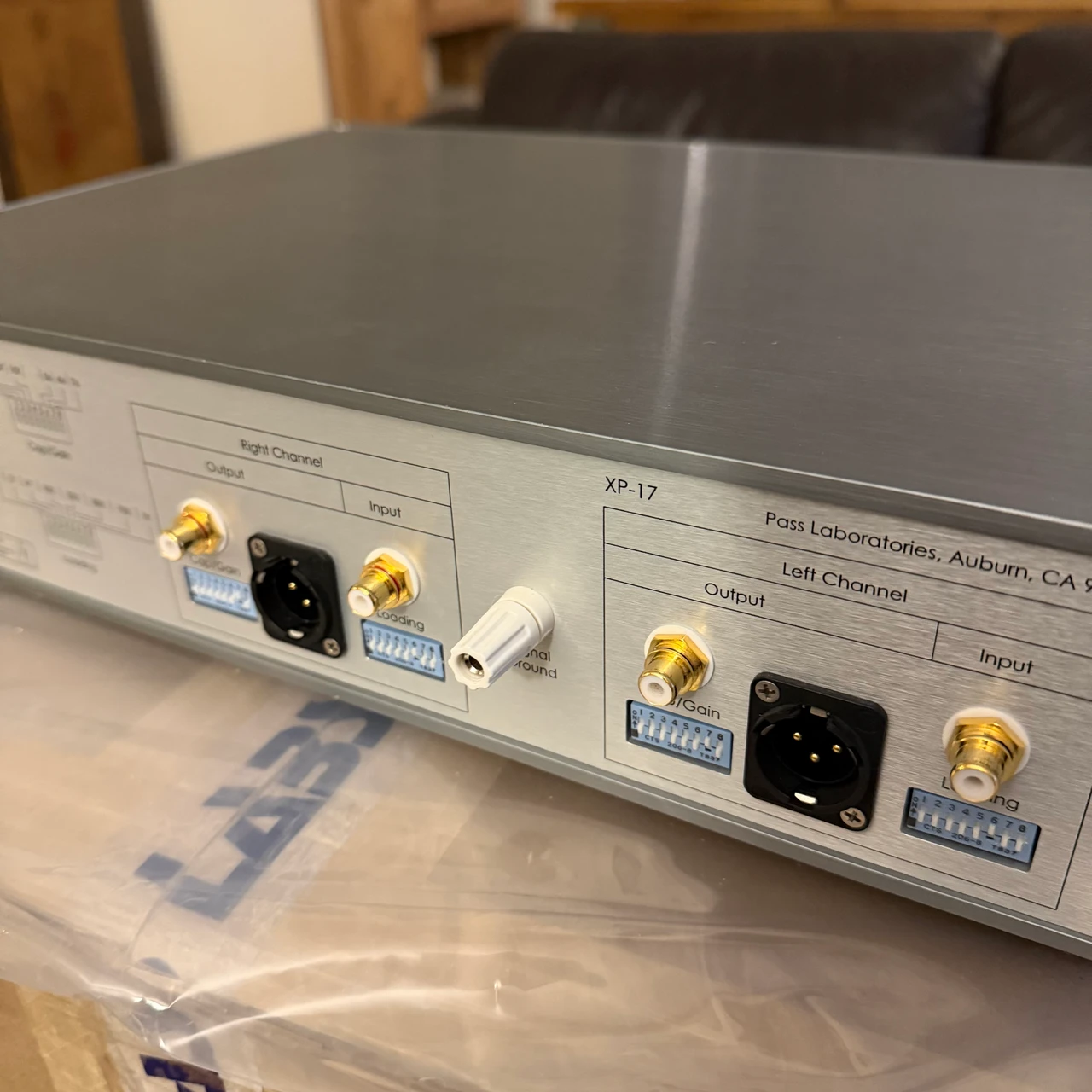

The Pass Labs XP-17 features an ultra-flexible rear control panel. Multiple dip-switch arrays allow you to precisely match the electrical requirements of any premium cartridge on the market.
- Tailored Gain Control: Selectable gain settings up to 76 dB (XLR) and 70 dB (RCA) to effortlessly drive low-output MC cartridges.
- Resistive Loading: Offers over 200 distinct values ranging from 10 Ohms to 47k Ohms for perfect cartridge impedance matching.
- Capacitive Loading: Adjustable from 10 pF to 750 pF to match any Moving Magnet setup.
Technical Specifications
- RIAA Curve Accuracy: ±0.1 dB (20 Hz to 20 kHz)
- Total Harmonic Distortion (THD): 0.004%
- Output Impedance: 110 Ohms (Unbalanced RCA) / 220 Ohms (Balanced XLR)
- Power Consumption: 40 Watts
- Dimensions: 43.2 cm W x 31.8 cm D x 10.2 cm H
- Weight: 8.6 kg
